Perform ClusterDE on a spatial dataset (one domain)
Siqi Chen
Computer Science, Central South Universitysiqichen4477@gmail.com
Dongyuan Song
Department of Genetics & Genome Sciences, UConn HealthBioinformatics IDP, University of California, Los Angelesdongyuansong@ucla.edu
27 August 2026
Source:vignettes/ClusterDE-spatial-onedomain.Rmd
ClusterDE-spatial-onedomain.RmdDownload data
We selected white matter (WM) of 151673 slice from the LIBD Human Dorsolateral Prefrontal Cortex (DLPFC) dataset, which is downloaded in the spatialLIBD R package.

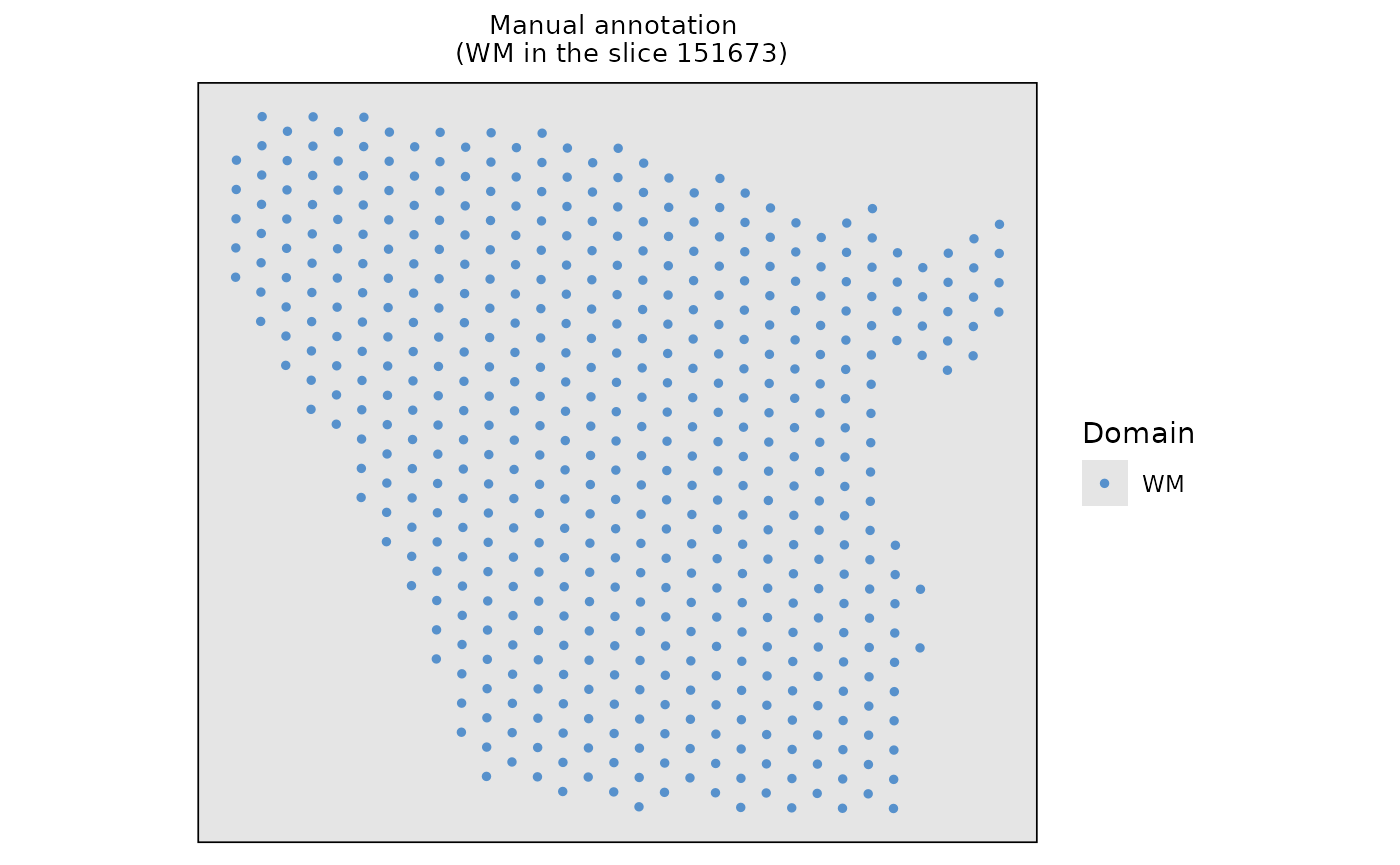

data(dlpfc_onedomain, package = "ClusterDE")Visualize the real data on spatial mapping.
# Visualize the real spatial domains
domains <- data.frame(Xaxis = dlpfc_onedomain$spatial1, Yaxis = dlpfc_onedomain$spatial2, Domain = dlpfc_onedomain$cell_type)
#> Loading required namespace: SeuratObject
ggplot2::ggplot(domains, ggplot2::aes(x = Xaxis, y = Yaxis, col = Domain)) +
ggplot2::geom_point(size = 1.0) +
ggplot2::ggtitle("Manual annotation \n (WM in the slice 151673)") +
ggplot2::coord_equal() +
ggplot2::theme(
plot.title = ggplot2::element_text(size = 10, hjust = 0.5),
panel.grid = ggplot2::element_blank(),
panel.background = ggplot2::element_rect(fill = "gray90"),
panel.border = ggplot2::element_rect(color = "black", fill = NA, size = 0.6),
axis.title.x = ggplot2::element_blank(),
axis.title.y = ggplot2::element_blank(),
axis.ticks.x = ggplot2::element_blank(),
axis.ticks.y = ggplot2::element_blank(),
axis.text.x = ggplot2::element_blank(),
axis.text.y = ggplot2::element_blank()
) +
ggplot2::scale_color_manual(values = "#5791cc")
#> Warning: The `size` argument of `element_rect()` is deprecated as of ggplot2 3.4.0.
#> ℹ Please use the `linewidth` argument instead.
#> This warning is displayed once every 8 hours.
#> Call `lifecycle::last_lifecycle_warnings()` to see where this warning was
#> generated.
Run the BayesSpace + Seurat pipeline
First, we employed the BayesSpace for spatial clustering. Please note that ClusterDE is designed for 1 vs 1 comparison; therefore, we obtain two spatial clusters for illustration purpose.
# Construct the input of BayesSpace based on real dataset
# The input of BayesSpace is sce object
dlpfc_onedomain_sce <- SingleCellExperiment::SingleCellExperiment(
list(counts = Seurat::GetAssayData(dlpfc_onedomain, layer = "counts"))
)
# Add colData information of SingleCellExperiment
dlpfc_onedomain_sce$row <- dlpfc_onedomain@meta.data$row
dlpfc_onedomain_sce$col <- dlpfc_onedomain@meta.data$col
dlpfc_onedomain_sce$array_row <- dlpfc_onedomain@meta.data$row
dlpfc_onedomain_sce$array_col <- dlpfc_onedomain@meta.data$col
dlpfc_onedomain_sce$spatial1 <- dlpfc_onedomain@meta.data$spatial1
dlpfc_onedomain_sce$spatial2 <- dlpfc_onedomain@meta.data$spatial2
# Log-normalize the count data
RNGkind("L'Ecuyer-CMRG")
seed <- 123
set.seed(seed)
dlpfc_onedomain_sce <- BayesSpace::spatialPreprocess(
dlpfc_onedomain_sce,
platform = "Visium",
n.PCs = 7,
log.normalize = T
)
# Clustering with BayesSpace
dlpfc_onedomain_sce <- BayesSpace::spatialCluster(
dlpfc_onedomain_sce,
q = 2,
platform = "Visium",
d = 7,
init.method = "mclust",
model = "t",
gamma = 2,
nrep = 1000,
burn.in = 100,
save.chain = T
)
#> Neighbors were identified for 513 out of 513 spots.
#> Fitting model...
#> Calculating labels using iterations 101 through 1000.
dlpfc_onedomain <- Seurat::as.Seurat(dlpfc_onedomain_sce)
#> Warning: `PackageCheck()` was deprecated in SeuratObject 5.0.0.
#> ℹ Please use `rlang::check_installed()` instead.
#> ℹ The deprecated feature was likely used in the Seurat package.
#> Please report the issue at <https://github.com/satijalab/seurat/issues>.
#> This warning is displayed once every 8 hours.
#> Call `lifecycle::last_lifecycle_warnings()` to see where this warning was
#> generated.
#> Warning: The `slot` argument of `SetAssayData()` is deprecated as of SeuratObject 5.0.0.
#> ℹ Please use the `layer` argument instead.
#> ℹ The deprecated feature was likely used in the Seurat package.
#> Please report the issue at <https://github.com/satijalab/seurat/issues>.
#> This warning is displayed once every 8 hours.
#> Call `lifecycle::last_lifecycle_warnings()` to see where this warning was
#> generated.
#> Warning: Keys should be one or more alphanumeric characters followed by an
#> underscore, setting key from PC to PC_

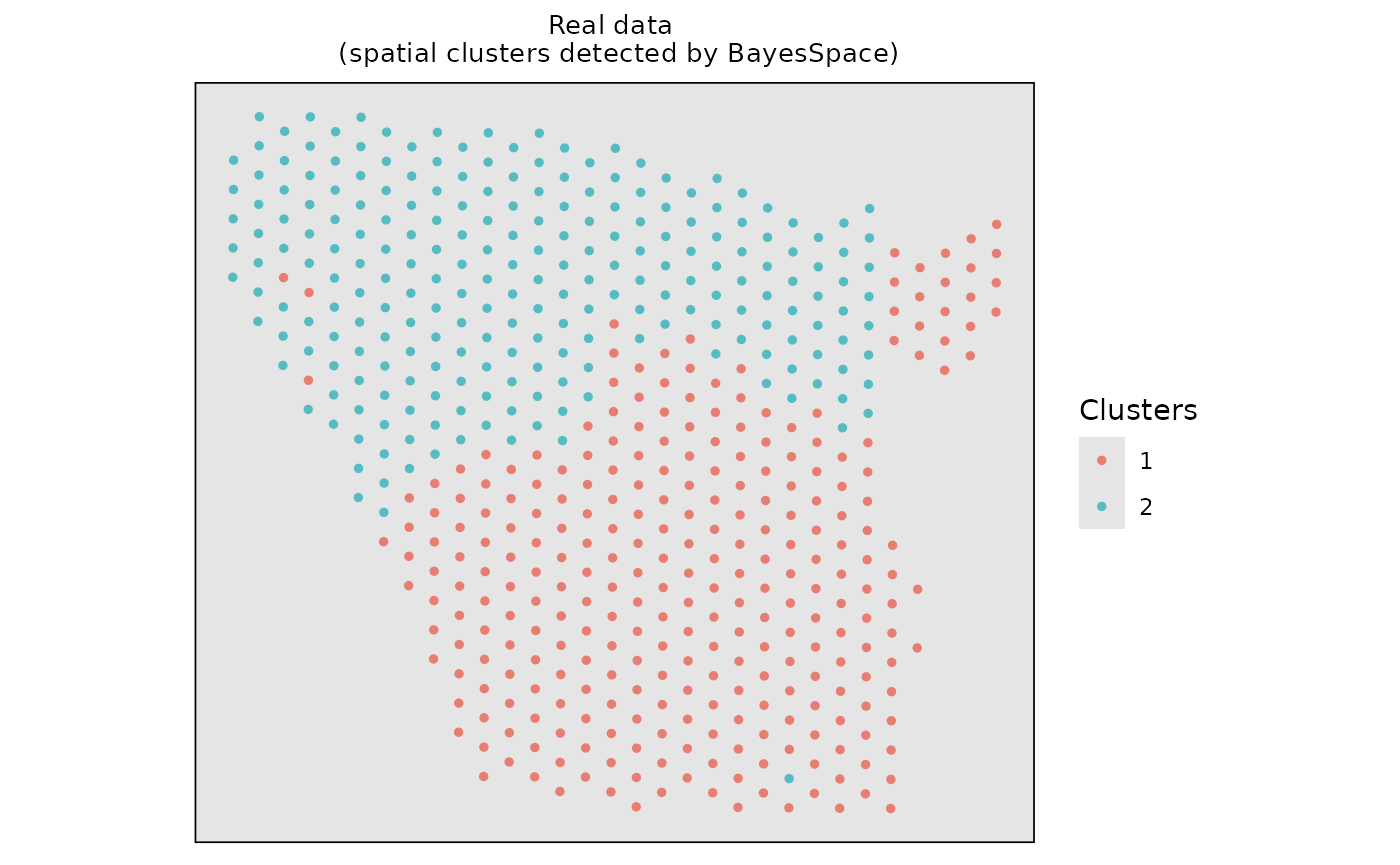

Seurat::Idents(dlpfc_onedomain) <- "spatial.cluster"Visualize the spatial clustering results based on the real data.
# Visualize the spatial cluster
clusters <- data.frame(
Xaxis = dlpfc_onedomain$spatial1,
Yaxis = dlpfc_onedomain$spatial2,
Clusters = as.character(dlpfc_onedomain$spatial.cluster)
)
ggplot2::ggplot(clusters, ggplot2::aes(x = Xaxis, y = Yaxis, col = Clusters)) +
ggplot2::geom_point(size = 1.0) +
ggplot2::coord_equal() +
ggplot2::ggtitle("Real data \n (spatial clusters detected by BayesSpace)") +
ggplot2::theme(
plot.title = ggplot2::element_text(size = 10, hjust = 0.5),
panel.grid = ggplot2::element_blank(),
panel.background = ggplot2::element_rect(fill = "gray90"),
panel.border = ggplot2::element_rect(color = "black", fill = NA, size = 0.6),
axis.title.x = ggplot2::element_blank(),
axis.title.y = ggplot2::element_blank(),
axis.ticks.x = ggplot2::element_blank(),
axis.ticks.y = ggplot2::element_blank(),
axis.text.x = ggplot2::element_blank(),
axis.text.y = ggplot2::element_blank()
) +
ggplot2::scale_color_manual(values = c("#e87d72", "#54bcc2"))
Then, we used the common DE method (Wilcoxon Rank Sum Test) to identify domain marker genes between the two spatial clusters.
original_deg <- Seurat::FindMarkers(
object = dlpfc_onedomain,
ident.1 = 1,
ident.2 = 2,
test.use = "wilcox",
logfc.threshold = 0,
min.pct = 0,
min.cells.feature = 1,
min.cells.group = 1
)
#> Warning: The `slot` argument of `GetAssayData()` is deprecated as of SeuratObject 5.0.0.
#> ℹ Please use the `layer` argument instead.
#> ℹ The deprecated feature was likely used in the Seurat package.
#> Please report the issue at <https://github.com/satijalab/seurat/issues>.
#> This warning is displayed once every 8 hours.
#> Call `lifecycle::last_lifecycle_warnings()` to see where this warning was
#> generated.
original_pval <- original_deg$p_val_adj
names(original_pval) <- rownames(original_deg)
print(paste0("Seurat found ", sum(original_deg$p_val_adj < 0.05), " DEG"))
#> [1] "Seurat found 68 DEG"Find DEGs using ClusterDE
We use spatial coordinates as covariates to generate synthetic null data, then apply the same BayesSpace clustering method as target data.
set.seed(seed)
null_data <- ClusterDE::constructNull(
dlpfc_onedomain,
data_type = "spatial",
formula = "s(spatial1, spatial2, bs = 'gp', k = 4)",
other_covariates = c("spatial1", "spatial2")
)
#> Registered S3 method overwritten by 'gamlss':
#> method from
#> print.ri bit
#> Registered S3 method overwritten by 'scDesign3':
#> method from
#> predict.gamlss gamlss
#> Input Data Construction Start
#> Input Data Construction End
#> Start Marginal Fitting
#> Marginal Fitting End
#> Start Copula Fitting
#> Convert Residuals to Multivariate Gaussian
#> Converting End
#> Copula group 1 starts
#> Copula Fitting End
#> Start Parameter Extraction
#> Parameter
#> Extraction End
#> Start Generate New Data
#> Use Copula to sample a multivariate quantile matrix
#> Sample Copula group 1 starts
#> New Data Generating End
null_obj_sce <- SingleCellExperiment::SingleCellExperiment(list(counts = null_data))
null_obj_sce$row <- dlpfc_onedomain@meta.data$row
null_obj_sce$col <- dlpfc_onedomain@meta.data$col
null_obj_sce$array_row <- dlpfc_onedomain@meta.data$row
null_obj_sce$array_col <- dlpfc_onedomain@meta.data$col
null_obj_sce$spatial1 <- dlpfc_onedomain@meta.data$spatial1
null_obj_sce$spatial2 <- dlpfc_onedomain@meta.data$spatial2
null_obj_sce <- BayesSpace::spatialPreprocess(
null_obj_sce,
platform = "Visium",
n.PCs = 7,
log.normalize = T
)
null_obj_sce <- BayesSpace::spatialCluster(
null_obj_sce,
q = 2,
platform = "Visium",
d = 7,
init.method = "mclust",
model = "t",
gamma = 2,
nrep = 1000,
burn.in = 100,
save.chain = T
)
#> Neighbors were identified for 513 out of 513 spots.
#> Fitting model...
#> Calculating labels using iterations 101 through 1000.
null_obj <- Seurat::as.Seurat(null_obj_sce)
#> Warning: Keys should be one or more alphanumeric characters followed by an
#> underscore, setting key from PC to PC_
Seurat::Idents(null_obj) <- "spatial.cluster"Compare gene p-values from target and synthetic data, we observe that ClusterDE does not detect any DEG.
null_deg <- Seurat::FindMarkers(
object = null_obj,
ident.1 = 1,
ident.2 = 2,
test.use = "wilcox",
logfc.threshold = 0,
min.pct = 0,
min.cells.feature = 1,
min.cells.group = 1
)
null_pval <- null_deg$p_val_adj
names(null_pval) <- rownames(null_deg)
deg <- ClusterDE::callDE(original_pval, null_pval)
print(paste0("ClusterDE found ", sum(deg$record >= 0.5), " DEG"))
#> [1] "ClusterDE found 0 DEG"Session information
