Perform ClusterDE on a two-domain spatial dataset
Siqi Chen
Computer Science, Central South Universitysiqichen4477@gmail.com
Dongyuan Song
Department of Genetics & Genome Sciences, UConn Healthdongyuansong@ucla.edu
11 December 2025
Source:vignettes/ClusterDE-twodomains.Rmd
ClusterDE-twodomains.RmdDownload data
We selected adjacent layer 6 and WM of 151673 slice from the LIBD Human Dorsolateral Prefrontal Cortex (DLPFC) dataset, which is downloaded in the spatialLIBD R package. We removed the genes expressed in fewer than 20% spots to save computational time here.
# # Download the spot-level data
# spe <- spatialLIBD::fetch_data(type = "spe")
#
# # Select the Layer6 and WM domains in the slice "151673"
# sub_151673 <- spe[, spe$sample_id == "151673"]
# index <- sub_151673$spatialLIBD == "L6" | sub_151673$spatialLIBD == "WM"
# index[which(is.na(index))] <- "NAN"
# sub_151673 <- sub_151673[, index == "TRUE"]
# print(sub_151673)
#
# # Delete the genes that express rate less than 20%
# data <- sub_151673@assays@data$counts
# zero_expre_rate <- apply(data, 1, function(x) {
# zero_true <- x == 0
# zero_num <- length(which(zero_true == TRUE)) / dim(data)[2]
# return(zero_num)
# })
# zero_expre_gene_idx <- which(zero_expre_rate < 0.8)
# sub_151673 <- sub_151673[zero_expre_gene_idx,]
# cat(paste0("The size of data: ", dim(sub_151673)[1], "*", dim(sub_151673)[2], sep = ""))
#
# # Construct the SingleCellExperiment object
# dlpfc_twodomain <- SingleCellExperiment::SingleCellExperiment(list(counts = sub_151673@assays@data$counts))
# # Add colData information of singlecellexperiment
# dlpfc_twodomain$spatial1 <- sub_151673@int_colData@listData$spatialCoords[, 2]
# dlpfc_twodomain$spatial2 <- sub_151673@int_colData@listData$spatialCoords[, 1]
# dlpfc_twodomain$cell_type <- sub_151673@colData$spatialLIBD
# SingleCellExperiment::logcounts(dlpfc_twodomain) <- log1p(SingleCellExperiment::counts(dlpfc_twodomain))
# dlpfc_twodomain <- Seurat::as.Seurat(dlpfc_twodomain)
data(dlpfc_twodomain, package = "ClusterDE")Visualize the real data with two domains (L6 and WM).
# Visualize the real spatial domains
domains <- data.frame(Xaxis = dlpfc_twodomain$spatial1, Yaxis = dlpfc_twodomain$spatial2, Domains = dlpfc_twodomain$cell_type)
#> Loading required package: SeuratObject
#> Loading required package: sp
#>
#> Attaching package: 'SeuratObject'
#> The following objects are masked from 'package:base':
#>
#> intersect, t
ggplot2::ggplot(domains, ggplot2::aes(x = Xaxis, y = Yaxis, col = Domains)) +
ggplot2::geom_point(size = 1.0) +
ggplot2::coord_equal() +
ggplot2::ggtitle("Manual annotation \n (The layer6 and WM in the slice 151673)") +
ggplot2::theme(
plot.title = ggplot2::element_text(size = 10, hjust = 0.5),
panel.grid = ggplot2::element_blank(),
panel.background = ggplot2::element_rect(fill = "gray90"),
panel.border = ggplot2::element_rect(color = "black", fill = NA, linewidth = 0.6),
axis.title.x = ggplot2::element_blank(),
axis.title.y = ggplot2::element_blank(),
axis.ticks.x = ggplot2::element_blank(),
axis.ticks.y = ggplot2::element_blank(),
axis.text.x = ggplot2::element_blank(),
axis.text.y = ggplot2::element_blank()
) +
ggplot2::scale_color_manual(values = c("#5791cc", "#403f92"))
Run the BayesSpace + Seurat pipeline
Firstly, we employed the BayesSpace for spatial clustering. Please note that ClusterDE is designed for 1 vs 1 comparison; therefore, we obtain two spatial clusters for illustration purpose.
# Construct the input of BayesSpace based on real dataset
# The input of BayesSpace is sce object
dlpfc_cluster <- SingleCellExperiment::SingleCellExperiment(
list(counts = Seurat::GetAssayData(dlpfc_twodomain, layer = "counts"))
)
#> Warning: replacing previous import 'S4Arrays::makeNindexFromArrayViewport' by
#> 'DelayedArray::makeNindexFromArrayViewport' when loading 'SummarizedExperiment'
# Add colData information of singlecellexperiment
dlpfc_cluster$row <- dlpfc_twodomain$spatial1
dlpfc_cluster$col <- dlpfc_twodomain$spatial2
# Log-normalize the count data
set.seed(123)
dlpfc_cluster <- BayesSpace::spatialPreprocess(dlpfc_cluster, platform = "ST", n.PCs = 7, log.normalize = T)
# Clustering with BayesSpace
dlpfc_cluster <- BayesSpace::spatialCluster(
dlpfc_cluster,
q = 2,
platform = "ST",
d = 7,
init.method = "mclust",
model = "t",
gamma = 2,
nrep = 1000,
burn.in = 100,
save.chain = T
)
#> Neighbors were identified for 0 out of 1205 spots.
#> Fitting model...
#> You created a large dataset with compression and chunking.
#> The chunk size is equal to the dataset dimensions.
#> If you want to read subsets of the dataset, you should testsmaller chunk sizes to improve read times.
#> You created a large dataset with compression and chunking.
#> The chunk size is equal to the dataset dimensions.
#> If you want to read subsets of the dataset, you should testsmaller chunk sizes to improve read times.
#> Calculating labels using iterations 100 through 1000.Visualize the spatial clustering results based on the real data.

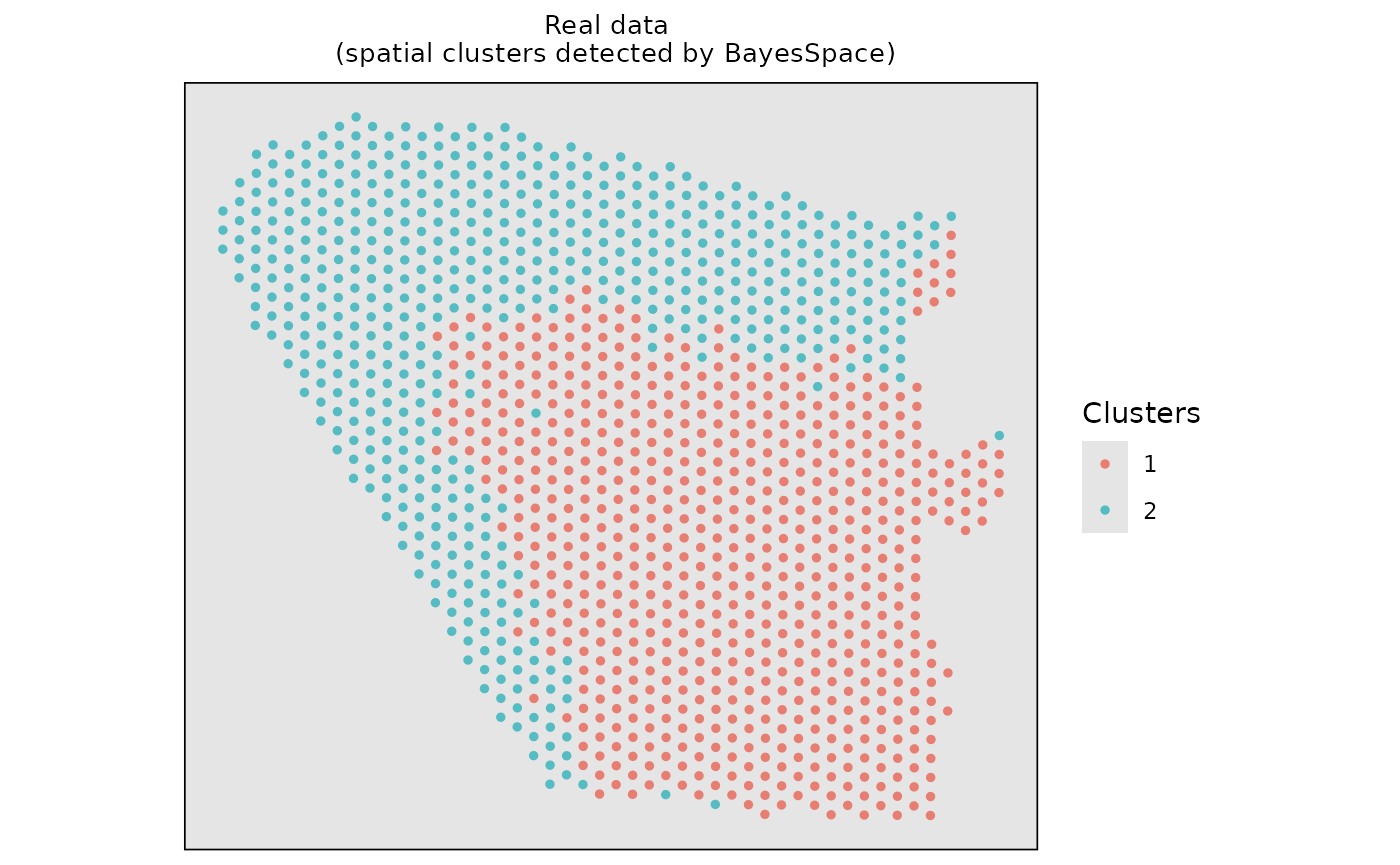

# Visualize the spatial cluster
clusters <- data.frame(Xaxis = dlpfc_cluster$row, Yaxis = dlpfc_cluster$col, Clusters = as.character(dlpfc_cluster$spatial.cluster))
ggplot2::ggplot(clusters, ggplot2::aes(x = Xaxis, y = Yaxis, col = Clusters)) +
ggplot2::geom_point(size = 1.0) +
ggplot2::coord_equal() +
ggplot2::ggtitle("Real data \n (spatial clusters detected by BayesSpace)") +
ggplot2::theme(
plot.title = ggplot2::element_text(size = 10, hjust = 0.5),
panel.grid = ggplot2::element_blank(),
panel.background = ggplot2::element_rect(fill = "gray90"),
panel.border = ggplot2::element_rect(color = "black", fill = NA, size = 0.6),
axis.title.x = ggplot2::element_blank(),
axis.title.y = ggplot2::element_blank(),
axis.ticks.x = ggplot2::element_blank(),
axis.ticks.y = ggplot2::element_blank(),
axis.text.x = ggplot2::element_blank(),
axis.text.y = ggplot2::element_blank()
) +
ggplot2::scale_color_manual(values = c("#e87d72", "#54bcc2"))
#> Warning: The `size` argument of `element_rect()` is deprecated as of ggplot2 3.4.0.
#> ℹ Please use the `linewidth` argument instead.
#> This warning is displayed once every 8 hours.
#> Call `lifecycle::last_lifecycle_warnings()` to see where this warning was
#> generated.
Then, we used the common DE method (Wilcoxon Rank Sum Test) to identify domain marker genes between the two spatial clusters.
# Identify domain marker genes in the real dataset based on the BayesSpace clustering result, follow Seurat tutorial
dlpfc_twodomain <- Seurat::as.Seurat(dlpfc_cluster)
#> Warning: Keys should be one or more alphanumeric characters followed by an
#> underscore, setting key from PC to PC_
Seurat::Idents(dlpfc_twodomain) <- "spatial.cluster"
original_markers <- Seurat::FindMarkers(
object = dlpfc_twodomain,
ident.1 = 2,
ident.2 = 1,
test.use = "wilcox",
logfc.threshold = 0,
min.pct = 0,
min.cells.feature = 1,
min.cells.group = 1
)
original_markers <- original_markers[original_markers$avg_log2FC > 0,]
head(original_markers)
#> p_val avg_log2FC pct.1 pct.2 p_val_adj
#> ENSG00000198804 6.479948e-127 0.9043609 1.000 1.000 1.815033e-123
#> ENSG00000132639 1.894004e-122 1.6959888 0.991 0.926 5.305106e-119
#> ENSG00000198938 1.063328e-108 0.7275062 1.000 1.000 2.978381e-105
#> ENSG00000154146 3.835596e-99 1.4389400 0.978 0.926 1.074350e-95
#> ENSG00000163032 6.974259e-99 1.6499892 0.966 0.821 1.953490e-95
#> ENSG00000187094 6.429586e-96 1.7939567 0.949 0.779 1.800927e-92Find DEGs using ClusterDE
We can use findMarkers() from ClusterDE with spatial specified as name of X and Y coordinates in the data meta columns. Here in the example, coordinates are stored in row and col.
res <- ClusterDE::findMarkers(dlpfc_twodomain, ident.1 = 2, ident.2 = 1, spatial = c("row", "col"))
#> 100% of genes are used in correlation modelling.
#> 0/1: Neighbors were identified for 0 out of 1205 spots.
#> 0/1: Fitting model...
#> 0/1: You created a large dataset with compression and chunking.
#> The chunk size is equal to the dataset dimensions.
#> If you want to read subsets of the dataset, you should testsmaller chunk sizes to improve read times.
#> 0/1: You created a large dataset with compression and chunking.
#> The chunk size is equal to the dataset dimensions.
#> If you want to read subsets of the dataset, you should testsmaller chunk sizes to improve read times.
#> 0/1: Calculating labels using iterations 100 through 1000.
#> 0/1: Normalizing layer: counts
head(res)
#> # A tibble: 6 × 3
#> gene cs record
#> <chr> <dbl> <dbl>
#> 1 ENSG00000132639 53.9 1
#> 2 ENSG00000171617 47.9 1
#> 3 ENSG00000163032 46.2 1
#> 4 ENSG00000198804 41.2 1
#> 5 ENSG00000139970 38.1 1
#> 6 ENSG00000128656 37.2 1Visualize top marker genes

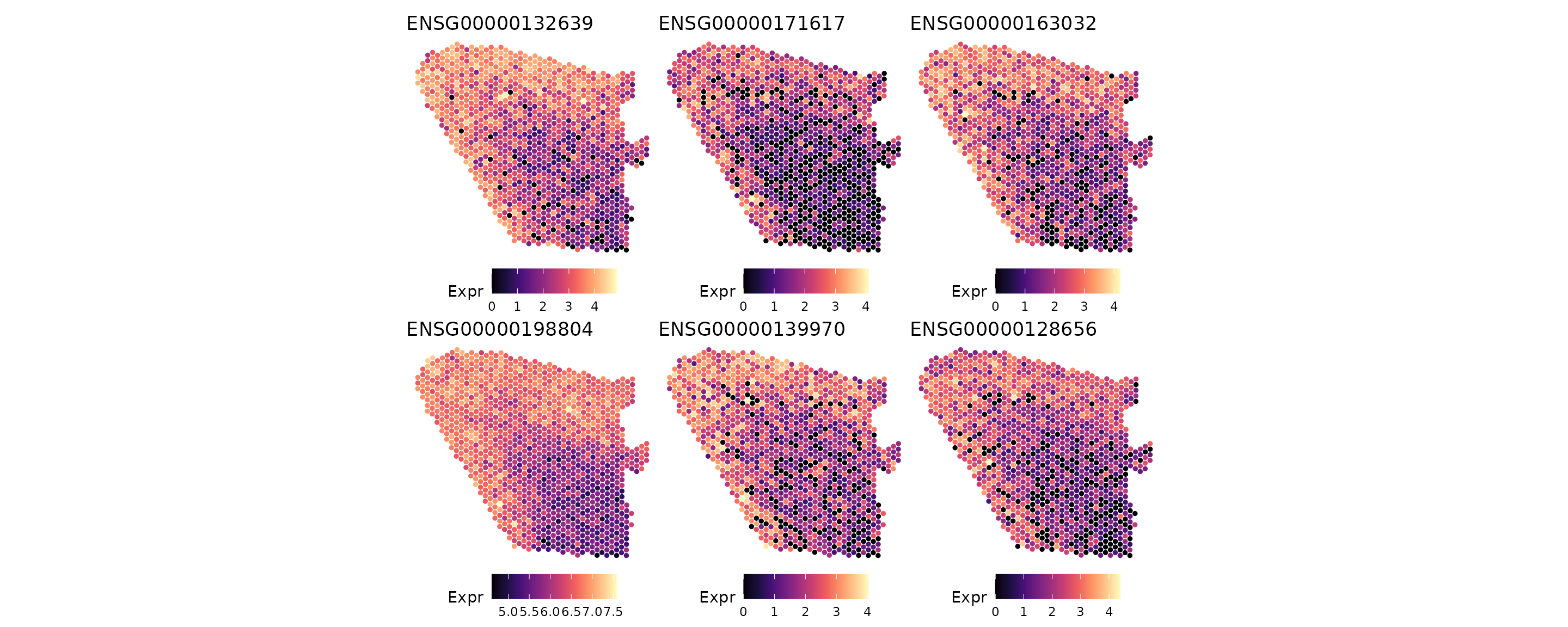

We visualize the top DE genes from ClusterDE. As expected, the top genes detected by ClusterDE exhibit clear spatial expression patterns.
top_genes_clusterde <- res$gene[1:6]
expr <- Seurat::GetAssayData(dlpfc_twodomain, layer = "data")[top_genes_clusterde, , drop = F]
x_coord <- dlpfc_twodomain@meta.data$row
y_coord <- dlpfc_twodomain@meta.data$col
plots <- lapply(top_genes_clusterde, function(gene) {
df <- data.frame(
X = x_coord,
Y = y_coord,
Expr = as.numeric(expr[gene,])
)
ggplot2::ggplot(df, ggplot2::aes(x = X, y = Y, color = Expr)) +
ggplot2::geom_point(size = 1) +
ggplot2::scale_colour_gradientn(colors = viridis::viridis_pal(option = "magma")(10)) +
ggplot2::coord_fixed() +
ggplot2::ggtitle(gene) +
ggplot2::theme_void() +
ggplot2::theme(legend.position = "bottom")
})
patchwork::wrap_plots(plots, nrow = 2)
